BIM / CAD

Download accurate, technical 3D design files for our products in RFA, DWG, and STP formats.

Can’t find a design file? Message us to make a request.

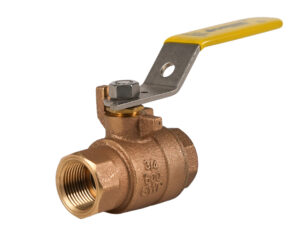

T-200CSS - Bronze ball valve with threaded ends and a yellow lever handle, marked "3/4 600 WOG." The valve is positioned against a plain white background.

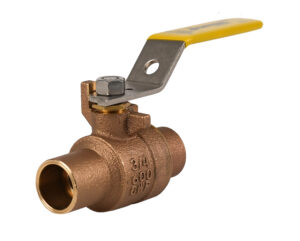

S-200CSS - Brass ball valve with a yellow handle, marked with “3/4 600 WSP.” The valve has a hexagonal nut and a clean, industrial appearance.

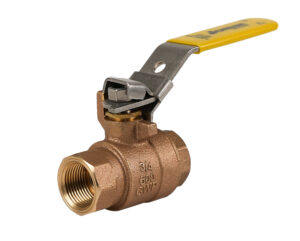

T-200CSS-LH - Brass ball valve with a yellow steel lever handle turned to the side, set against a plain white background, showing a rugged industrial finish.

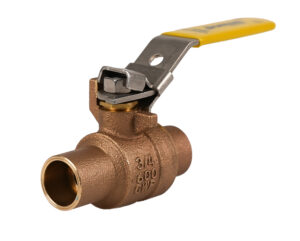

S-200CSS-LH - Bronze ball valve with a yellow lever handle, engraved with "3/4 600" text. The valve shows a sturdy industrial design against a white background.
T-200CSS-EH - A brass ball valve with a yellow lever handle is shown. It features threaded connections on both ends for pipe fitting. The setting is neutral and industrial.
S-200CSS-EH - Bronze ball valve with a yellow lever handle. The valve has a threaded connection, designed for controlling fluid flow. The handle is in an open position.
s-200ss-4b - Bronze ball valve with a yellow handle, featuring a four-bolt assembly and threaded openings on both ends. The valve appears sturdy and industrial.
