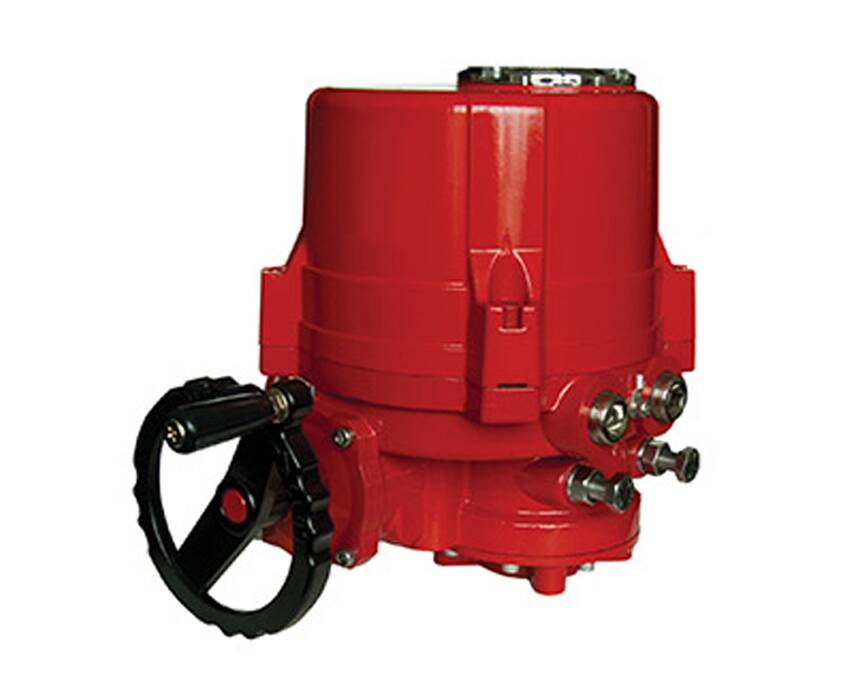

AE Series
Features
- Hard anodized aluminum housing with external powder coating for severe duty applications
- 90˚ operation
- Enclosure: IP67 (Nema 4, 4X)
- ISO 5211 mounting
- Worm gearing, no brake required
- Manual override standard
- Torque switches for overload protection (except for AE-180)
- Squirrel cage induction motor
- Duty Cycle: 50%
- 4 Limit switches (2 for AE-180)
- Cable entries: 3/4” NPT / M20 x 1.5
- 5W internal heater (AE-350 and larger)
- Terminal block for ease in wiring
- Position indicator
- Adjustable travel stops standard
- Temperature range:
- -4°F to 158°F – AE-350 and larger
- -22°F to 140°F – AE-180
AE Series – Modulating
Features
- Hard anodized aluminum housing with external powder coating for severe duty applications
- 90˚ operation
- Enclosure: IP67 (Nema 4, 4X)
- ISO 5211 mounting
- Worm gearing, no brake required
- Manual override standard
- Torque switches for overload protection (except for AE-180)
- Squirrel cage induction motor
- Duty Cycle: 50%
- 4 Limit switches (2 for AE-180)
- Cable entries: 3/4” NPT / M20 x 1.5
- 5W internal heater (AE-350 and larger)
- Terminal block for ease in wiring
- Position indicator
- Adjustable travel stops standard
- Temperature range:
- -4°F to 158°F – AE-350 and larger
- -22°F to 140°F – AE-180
AE Series – 24 VDC
AE Series – 24 VAC
JV Series – Double Acting Rotary
Features
- Hard anodized extruded aluminum body construction with both internal and external corrosion protection, having precision honed cylinder surfaces for longer life and low coefficient of friction
- Dual rack and piston design with multiple bearings and guides resulting in low friction and high cycle life, including blow-out proof output shaft design
- Modular type, epoxy coated spring design offers a wide torque range, greater safety, corrosion resistance and an extended life cycle
- Precisely machined pistons and pinions to provide for extremely precise rack and pinion engagement resulting in greater efficiency
- Completely O-ring sealed to prevent outside contamination
- Stainless steel fasteners for long term corrosion resistance
- Manufactured to fully conform to ISO5211 and DIN3337
- Namur interface mounting of solenoid valves, limit switches and positioners
- Travel stops are standard on all models
- Manufactured with silicone-free lubricants
- Torque ranges - Double Acting: up to 388,762 in/lb; Spring Return: up to 257,836 in/lb
JV Series – Spring Return Rotary
Features
- Hard anodized extruded aluminum body construction with both internal and external corrosion protection, having precision honed cylinder surfaces for longer life and low coefficient of friction
- Dual rack and piston design with multiple bearings and guides resulting in low friction and high cycle life, including blow-out proof output shaft design
- Modular type, epoxy coated spring design offers a wide torque range, greater safety, corrosion resistance and an extended life cycle
- Precisely machined pistons and pinions to provide for extremely precise rack and pinion engagement resulting in greater efficiency
- Completely O-ring sealed to prevent outside contamination
- Stainless steel fasteners for long term corrosion resistance
- Manufactured to fully conform to ISO5211 and DIN3337
- Namur interface mounting of solenoid valves, limit switches and positioners
- Travel stops are standard on all models
- Manufactured with silicone-free lubricants
- Torque ranges - Double Acting: up to 388,762 in/lb; Spring Return: up to 257,836 in/lb
ASM
Features
- Stainless Steel Mounting Bracket Made to NAMUR
- Die-cast Aluminum, Epoxy Polyester Coated Housing
- O-Ring Sealed to Prevent Contaminant from Entering Switch Compartment
- Position Indicator Manufactured of High-Impact Polycarbonate; Yellow = Open / Red = Closed
- Mechanical Switches are of SPDT Design
- Eight Position Terminal Strip Included
- IP 67 Weatherproof Enclosure Design
- Two 1/2” NPT Cable Entries
Options:
- Explosion proof: EExd IIB T6 and EExd IIC T6
- Switches: Maximum of (4) SPDT mechanical switches
- 2 Proximity switches
- Adjustable mounting bracket
AEP
Features
- Aluminum Housing Construction
- Visual Position Indicator
- Enclosure: IP66 | Input: 4-20mA
- Supply: 20-100 PSI
- Impedance: 250 OHM ± 15 OHM
- Linearity: ±1% / ±2% FS
- Operating Temperature: -4°F to 158°F
- Repeatability: ±0.5% FS | Hysteresis: ±1% FS
- Flow Capacity: 80 LPM | Air Consumption: 3 LPM
- Weight: 6.5 LB
- Explosion Proof Approval: ExdII BT6
- Signal: 1/2” Conduit
- Connections: 1/4” Air / 1/8” Gauge
- For Use With 1/4-turn Rotary Actuators
APP
Features
- Aluminum housing construction
- Visual position indicator
- Input: 3-15 PSI
- Supply: 20-100 PSI
- Linerarity: ±2% FS
- Operating Temperature: -4°F to 158°F
- Repeatability: ±0.5% FS
- Hysteresis: ±1% FS
- Flow Capacity: 80 LPM
- Air Consumption: 3 LPM
- Weight: 3.7 LB
- Enclosure: IP66
- Connections: 1/4" air / 1/8" gauge
- For use with 1/4-turn rotary actuators
ASV
Features
- Extruded Aluminum Body with NBR Seal
- 120/60/1 Coil with IP 67 Rating
- Manual Override
- 1/4” NPT Exhaust Port
- 1/2” NPT Conduit Connection
- Operating Temp: -40˚F to 140˚F
- Operating Pressure: 20 to 120 PSI
Options:
- 120vac
- 120vac explosion proof
- 24vac
- 24vdc
- 24vac explosion proof
- 24vdc explosion proof
- 240vac
- 12vdc coil
