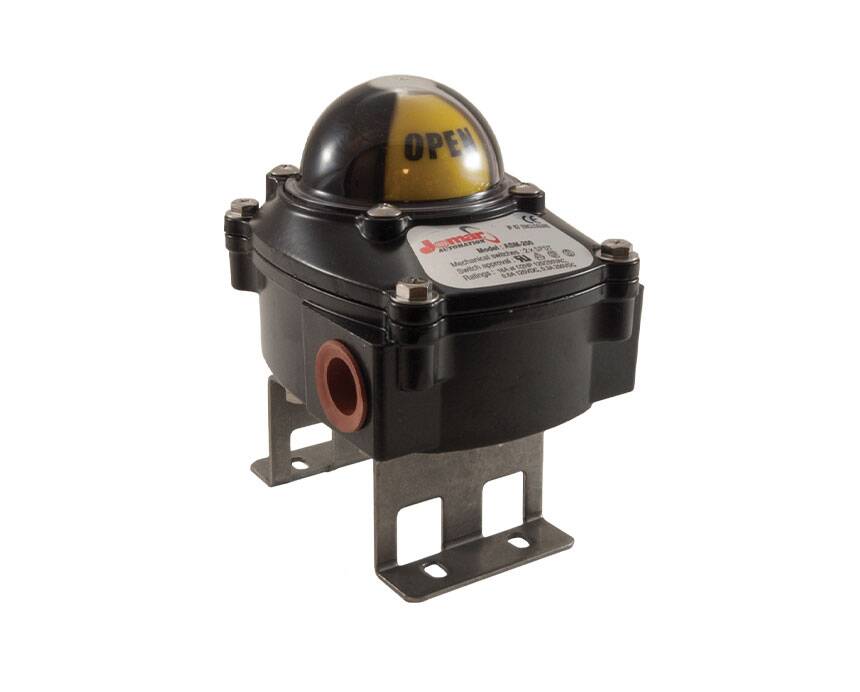

ASM
Features
- Die-Cast Aluminum, Epoxy Polyester Coated Housing
- Stainless Steel Mounting Bracket made to NAMUR
- O-Ring Sealed to Prevent Contaminants from Entering Switch Compartment
- Position Indicator Manufactured of High-Impact Polycarbonate: Yellow = Open / Red = Closed
- Mechanical Switches are SPDT Design
- Eight Position Terminal Strip Included
- Enclosure is IP 67 Weatherproof Design
- Two 1/2” NPT Cable Entries
Options:
- Explosion proof: EExd IIB T6 and EExd IIC T6
- Switches: Maximum of (4) SPDT mechanical switches
- 2 Proximity switches
- Adjustable mounting bracket

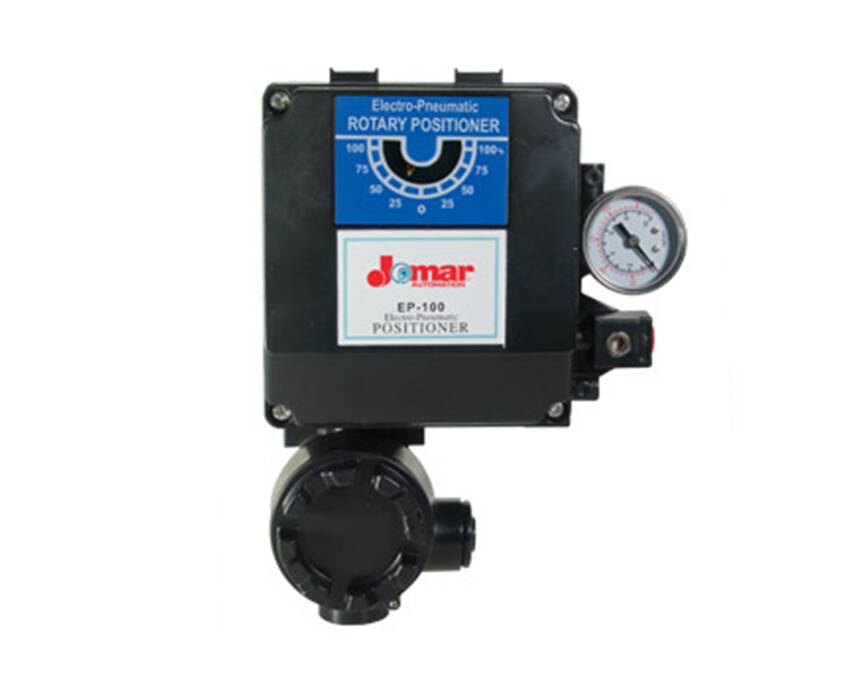

AEP
Features
- Aluminum Housing Construction
- Visual Position Indicator
- Enclosure: IP66 | Input: 4-20mA
- Supply: 20-100 PSI
- Impedance: 250 OHM ± 15 OHM
- Linearity: ±1% / ±2% FS
- Operating Temperature: -4°F to 158°F
- Repeatability: ±0.5% FS | Hysteresis: ±1% FS
- Flow Capacity: 80 LPM
- Air Consumption: 3 LPM
- Weight: 6.5 LB
- Explosion Proof Approval: ExdII BT6
- Signal: 1/2” Conduit
- Connections: 1/4” Air / 1/8” Gauge
- For Use With 1/4-Turn Rotary Actuators

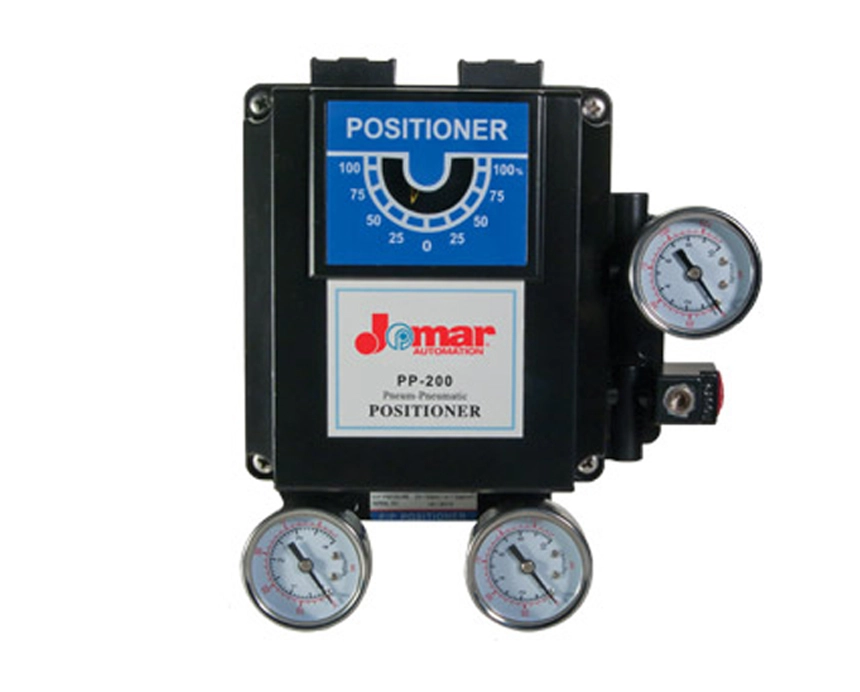

APP
Features
- Aluminum Housing Construction
- Visual Position Indicator
- Input: 3-15 PSI
- Supply: 20-100 PSI
- Linerarity: ±2% FS
- Operating Temperature: -4°F to 158°F
- Repeatability: ±0.5% FS
- Hysteresis: ±1% FS
- Flow Capacity: 80 LPM
- Air Consumption: 3 LPM
- Weight: 3.7 LB
- Enclosure: IP66
- Connections: 1/4″ air / 1/8″ Gauge
- For Use With 1/4-Turn Rotary Actuatorss

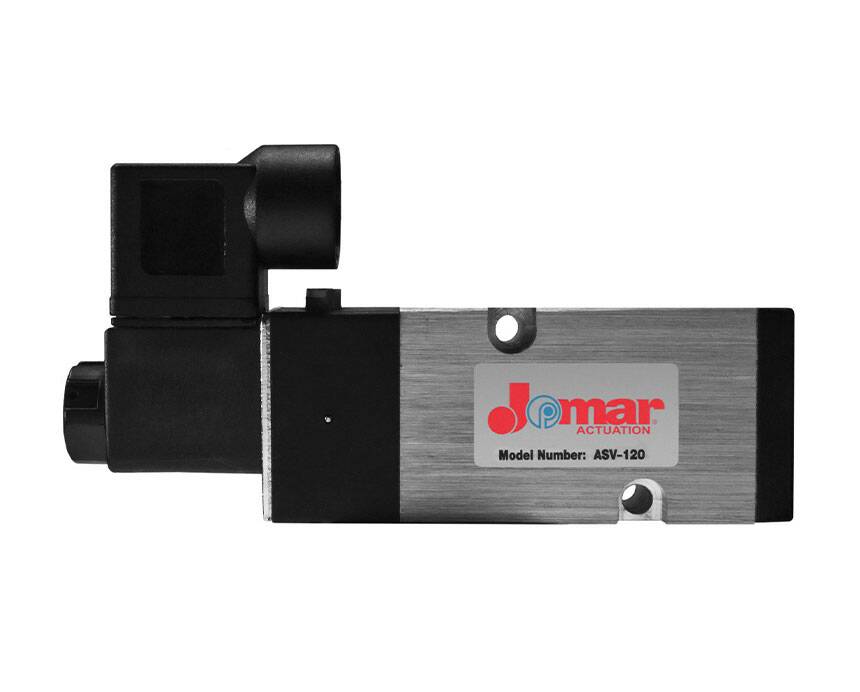

ASV
Features
- Extruded Aluminum Body with NBR Seal
- 120/60/1 Coil with IP 67 Rating
- Manual Override
- 1/4” NPT Exhaust Port
- 1/2” NPT Conduit Connection
- Operating Temp: -40˚F to 140˚F
- Operating Pressure: 20 to 120 PSI
Options:
- 120vac
- 120vac explosion proof
- 24vac
- 24vdc
- 24vac explosion proof
- 24vdc explosion proof
- 240vac
- 12vdc coil
