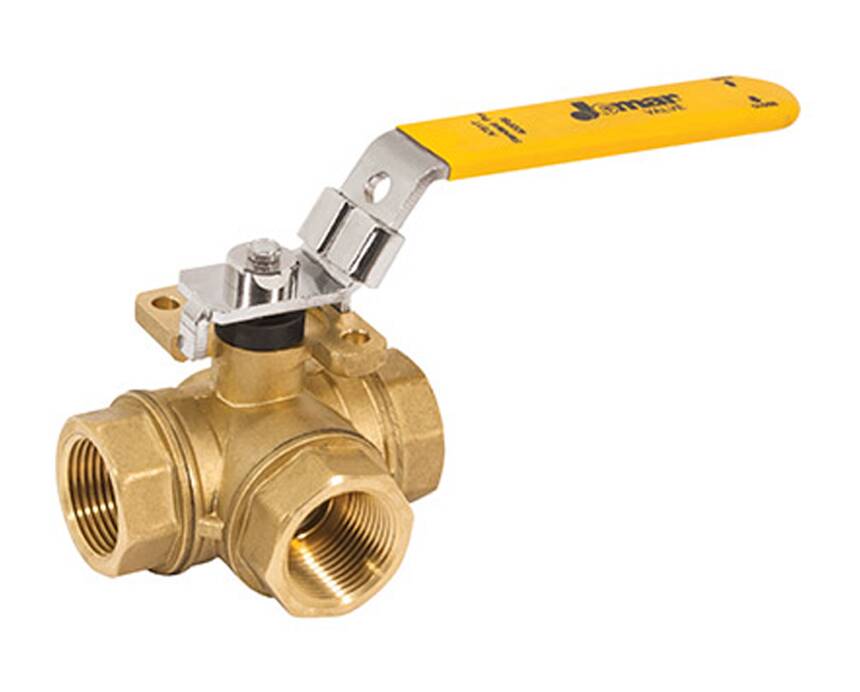

A-751T/L

Brass, 3-Way, Standard Port, T or L Port, Threaded Connection, ISO Mounting Pad, 400 WOG

Features
  • ISO 5211 Direct Mounting Pad
  • Square Valve Stem for Direct Mounting to Any ISO Actuator
  • Four Seats Standard
  • Blow-Out Proof Stem
  • Ships with Lever Handle





T-Port No. L-Port No. Size
A751T-14 A751L-14 1/4″
A751T-38  A751L-38 3/8″
A751T-12 A751L-12 1/2″
A751T-34 A751L-34 3/4″
A751T-1 A751L-1 1″
A751T-114 A751L-114 1-1/4″
A751T-112 A751L-112 1-1/2″
A751T-2 A751L-2 2″
A751T- 212* A751L-212* 2-1/2″
A751T-3* A751L-3* 3″
  • ANSI B1.20.1
