A101

A101

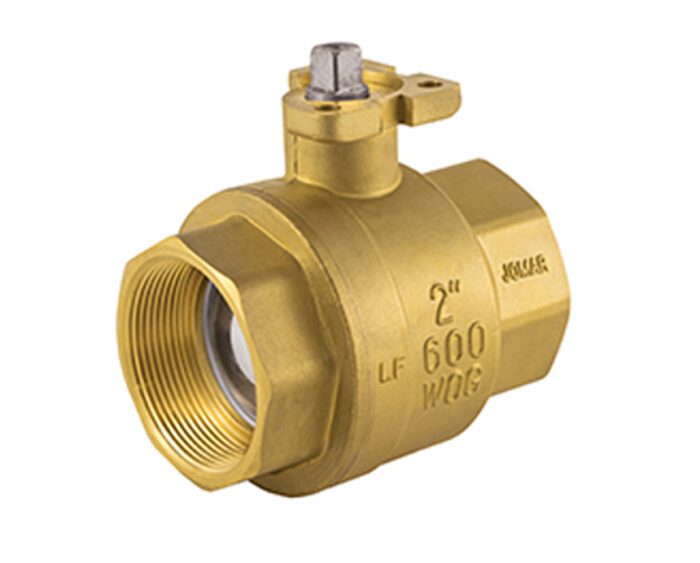

Lead Free Brass, 2 Piece, Full Port, Threaded Connection, Stainless Steel Trim, ISO Mounting Pad, 600 WOG

Features

Dezincification Resistant Brass Alloy
ISO 5211 Direct Mounting Pad
Square Valve Stem for Direct Mounting to any ISO Actuator
Latch Lock May be Locked in Open or Closed Position
Blow-Out Proof Stem
100% Leak Tested
Wetted Surfaces Contain Less than .25% Lead Content

Specification Sheet

Description

Shipping Info

Part No.	Size
A101-12	1/2″
A101-34	3/4″
A101-1	1″
A101-114	1-1/4″
A101-112	1-1/2″
A101-2	2″

Certifications

MSS SP-110
ANSI B1.20.1
NSF 372
NSF 61-8
RoHS Compliant

Resources

Sales Flyer: A101

BIM/CAD 3D

Download A101 STP Files
Download A101 DWG Files
