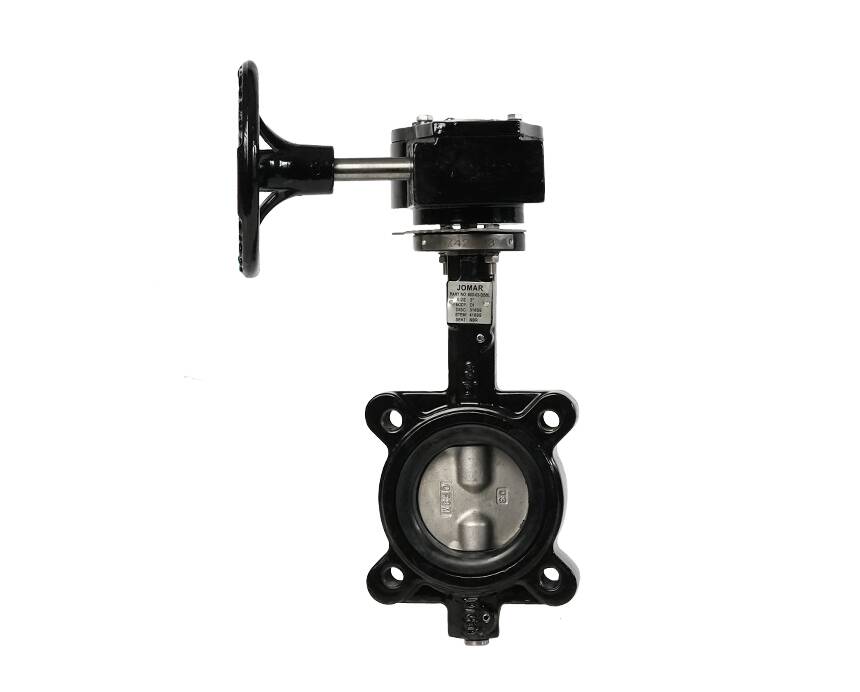

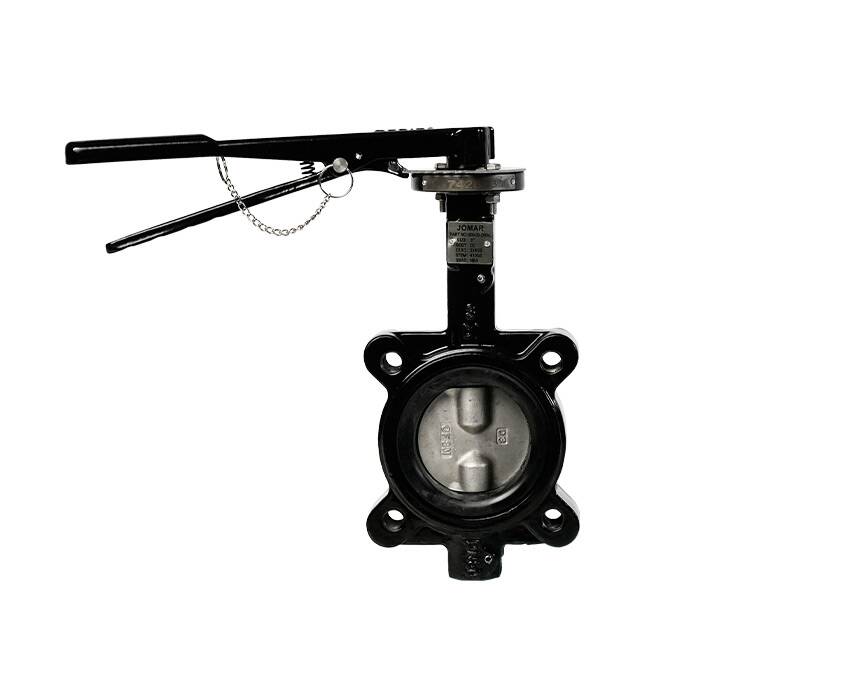

BFV-Lug
Butterfly Valve, Lug Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc
Features
• Designed for commercial, industrial and potable water applications up to 225psi
• NSF 61 / NSF 372 certified 2″-24″
• Easily accepts actuator with ISO 5211 mounting flange
• Available in EPDM, PTFE, Buna-N, or Viton® seats
• Meets API 609 & MSS SP-67
• Seat to flange seal eliminates the need for flange gaskets
• Series 600 Lug bodies are bidirectional for dead end service
• Epoxy coated finish
• Ideal for mounting pneumatic/electrical actuators
• Square stem for direct mount
• Wetted surfaces contain less than .25% lead content *NSF Certification for EPDM only
