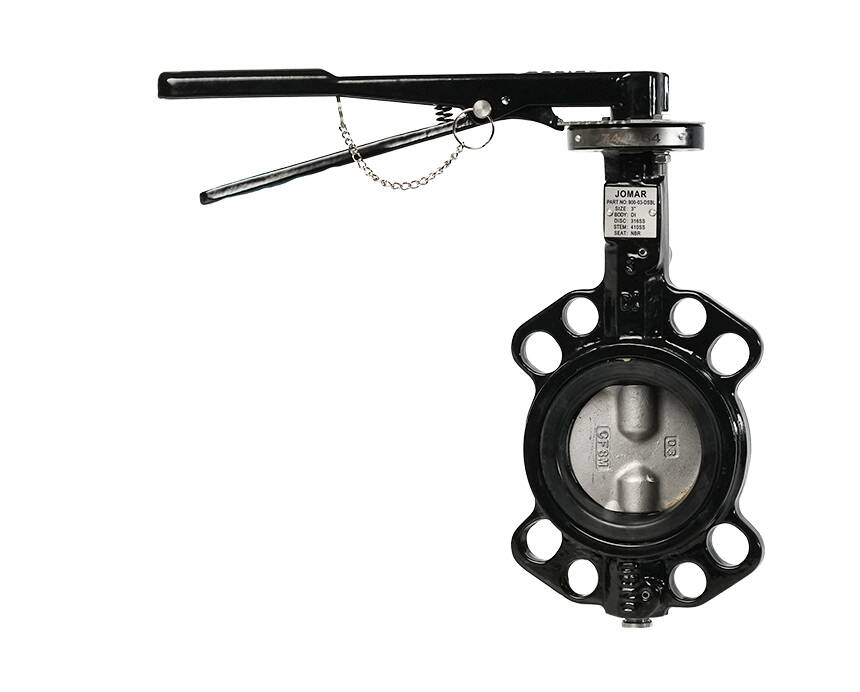

BFV-Wafer

Butterfly Valve, Wafer Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc

Epoxy-Coated Finish
EPDM, PTFE, Buna-N, or Viton® Seats Available
Square Stem for Direct Mount
Ideal for Mounting Pneumatic and Electrical Actuators
Easily Accepts Actuator with ISO 5211 Mounting Flange
Seat-to-Flange Seal Eliminates Need for Flange Gaskets
Designed for Commercial, Industrial and Potable Water Applications up to 225 PSI
NSF 61 / NSF 372 Certified: 2″-24″ (EPDM Seat Only)
Meets API 609 & MSS SP-67
Wetted Surfaces Contain Less than .25% Lead Content

HPBFV Stainless Steel 150 Class
High Performance Butterfly Valve, Lug Style, Stainless Steel Body, Stainless Steel Disc and Stem, ANSI Class 150
HPBFV Carbon Steel 300 Class
High Performance Butterfly Valve, Lug Style, Carbon Steel Body, Stainless Steel Disc and Stem, ANSI Class 300
HPBFV Stainless Steel 300 Class
High Performance Butterfly Valve, Lug Style, Stainless Steel Body, Stainless Steel Disc and Stem, ANSI Class 300
HPBFV Lever Handle
Ten Position, Lockable, For Use with High Performance Butterfly Valves
