AEP

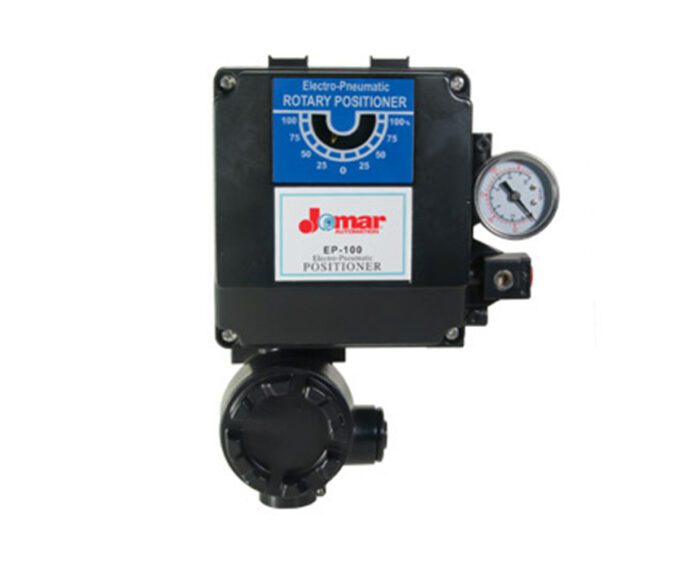

Electro-Pneumatic Rotary Positioner

Features
  • Aluminum Housing Construction
  • Visual Position Indicator
  • Enclosure: IP66 | Input: 4-20mA
  • Supply: 20-100 PSI
  • Impedance: 250 OHM ± 15 OHM
  • Linearity: ±1% / ±2% FS
  • Operating Temperature: -4°F to 158°F
  • Repeatability: ±0.5% FS | Hysteresis: ±1% FS
  • Flow Capacity: 80 LPM
  • Air Consumption: 3 LPM
  • Weight: 6.5 LB
  • Explosion Proof Approval: ExdII BT6
  • Signal: 1/2” Conduit
  • Connections: 1/4” Air / 1/8” Gauge
  • For Use With 1/4-Turn Rotary Actuators
