ASV

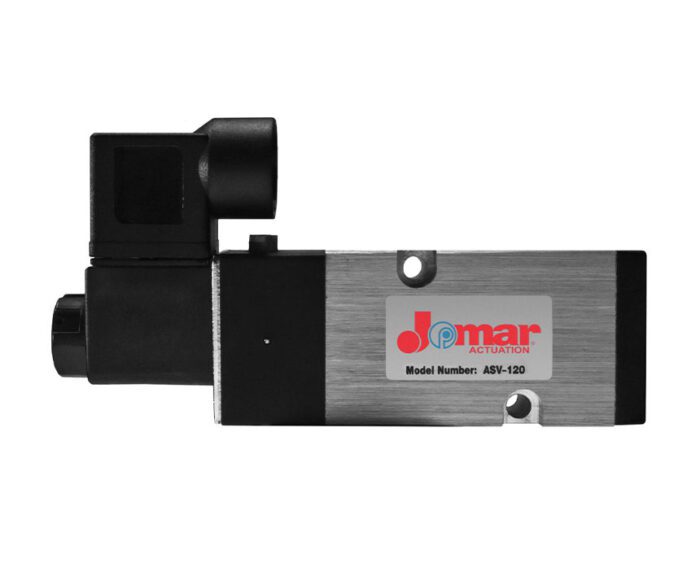

Four Way Solenoid Valve

Features
  • Extruded Aluminum Body with NBR Seal
  • 120/60/1 Coil with IP 67 Rating
  • Manual Override
  • 1/4” NPT Exhaust Port
  • 1/2” NPT Conduit Connection
  • Operating Temp: -40˚F to 140˚F
  • Operating Pressure: 20 to 120 PSI
Options:
  • 120vac
  • 120vac explosion proof
  • 24vac
  • 24vdc
  • 24vac explosion proof
  • 24vdc explosion proof
  • 240vac
  • 12vdc coil





Part No. Description
Solenoid Valves
ASV-120XP 120VAC
ASV-120VAC-N7 120VAC Explosion Proof
ASV61-24VDC 24VDC
ASV-24VDC-N7 24VDCExplosion Proof
Solenoid Coils
ASC-120VAC 120VAC
ASC-120VAC-XP 120VAC Explosion Proof
ASC-12VDC 12VDC
ASC-240VAC 240VAC
ASC-24VAC 24VAC
ASC-24VDC 24VDC
ASC-24VDC-XP 24VDC Explosion Proof
