A-766T/L

Share This Product

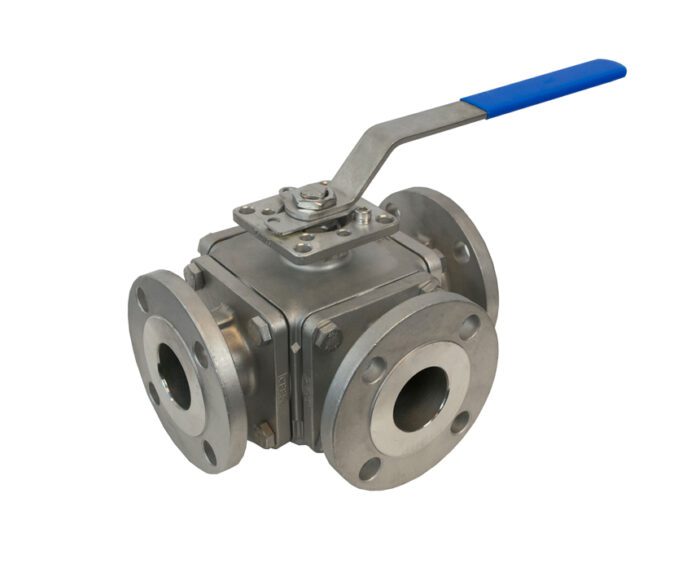

A-766T/L

3-Way, T or L Port, Full Port, Flanged Connection, 150 Class

Features
  • AISI 316 Stainless Steel
  • ANSI 150 Flanged
  • Max Temp: 344˚F
  • Blow-Out Proof Stem
  • 100% Leak Tested
  • Wetted Surfaces Contains Less than .25% Lead Content





T-Port Part No. L-Port Part No. Size
A766T-1 A766L-1 1″
A766T-112 A766L-112 1-1/2″
A766T-2 A766L-2 2″
A766T-212 A766L-212 2-1/2″
A766T-3 A766L-3 3″
A766T-4 A766L-4 4″

SME/ANSI B16.5
