AE Series – Modulating

Electric Actuator, 120VAC, Double Acting, NEMA 4X, Manual Override, 4-20mA Modulation

Hard Anodized Aluminum Housing with External Powder Coating for Severe Duty Applications
90˚ Operation
Enclosure: IP67 (NEMA 4, 4X)
ISO 5211 Mounting Pad
Worm Gearing, No Brake Required
Standard Manual Override
Torque Switches for Overload Protection
Squirrel Cage Induction Motor
Duty Cycle: 50%
4 Limit Switches
Cable Entries: 3/4” NPT / M20 x 1.5
5W Internal Heater
Terminal Block for Wiring Ease
Position Indicator
Standard Adjustable Travel Stops
Temperature Range: -4°F to 158°F

Part No.	Torque	Voltage	Cycle Time

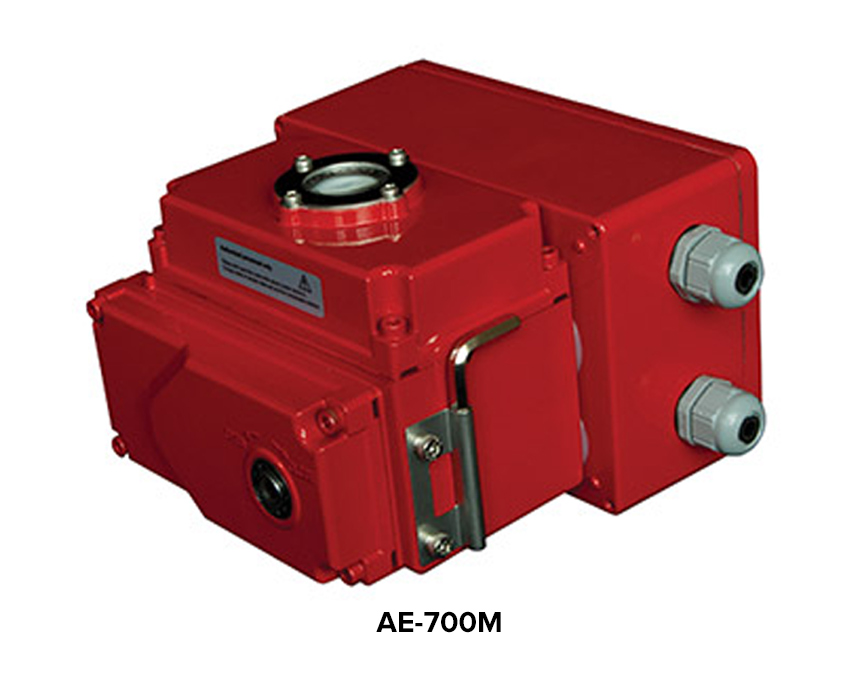

AE-700M	700	120	14

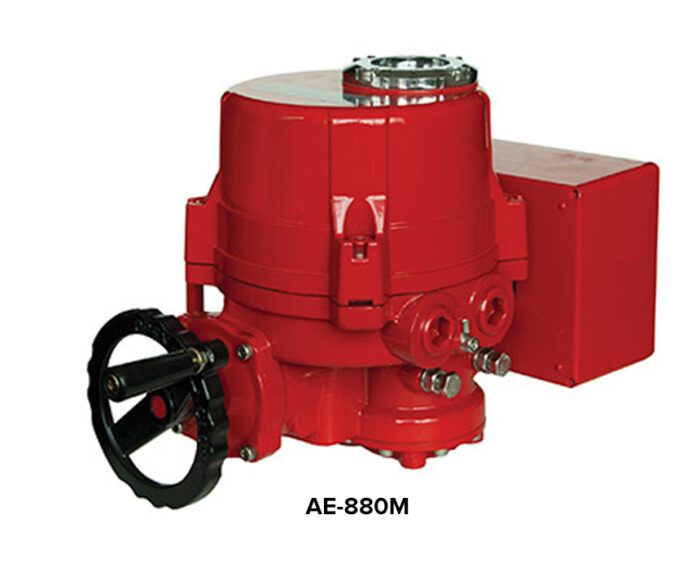

AE-880M	880	120	21
AE-1400M	1400	120	26
AE-2100M	2125	120	26
AE-3100M	3098	120	31
AE-4400M	4425	120	31
AE-7000M	7080	120	39
AE-9700M	9735	120	39

CSA applies to models AE-880 – AE9700:
- C22.2 No. 139-1982, 77-95, 100-04, UL429, UL2111, UL1004, 0-M91, 94.1-07, 94:2-07, 30-M1986, 25-1966, 1399-1982, 60529:05, 60079-0-07, 60079-1-07, ANSI/UL 429, 50E, 50, 1002, IEC 60529, 60079-0, 60079-1, and ANSI/UL 1203.

JV Series – Spring Return
Pneumatic Actuator, Spring Return, Rotary Rack, Pinion Design, Dual Travel Stops
A101
Lead Free Brass, 2 Piece, Full Port, Threaded Connection, Stainless Steel Trim, ISO Mounting Pad, 600 WOG
A-751T/L
Brass, 3-Way, Standard Port, T or L Port, Threaded Connection, ISO Mounting Pad, 400 WOG
Mounting Bracket
ISO 5211 Mounting Pad for Electric and Pneumatic Actuators
