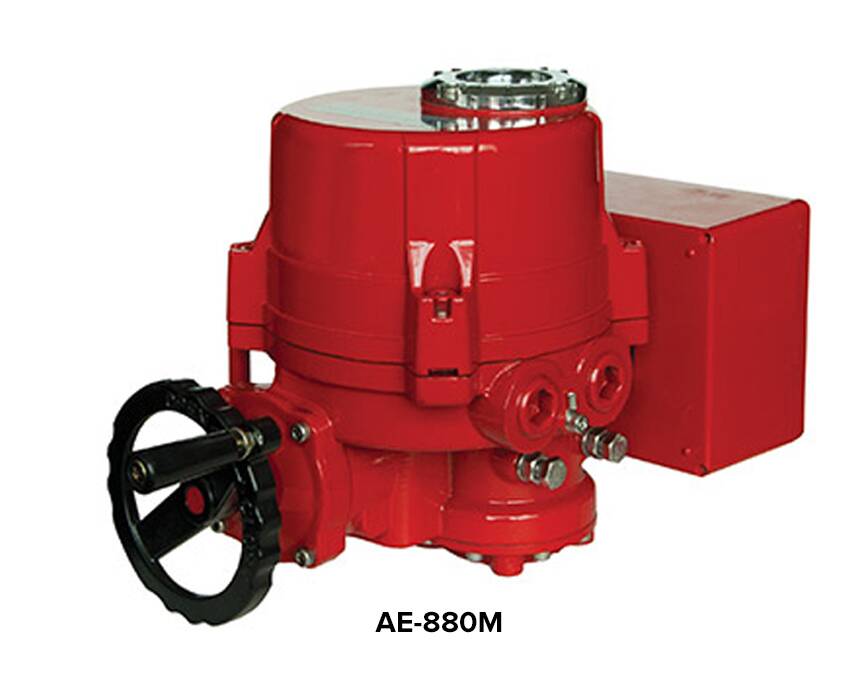

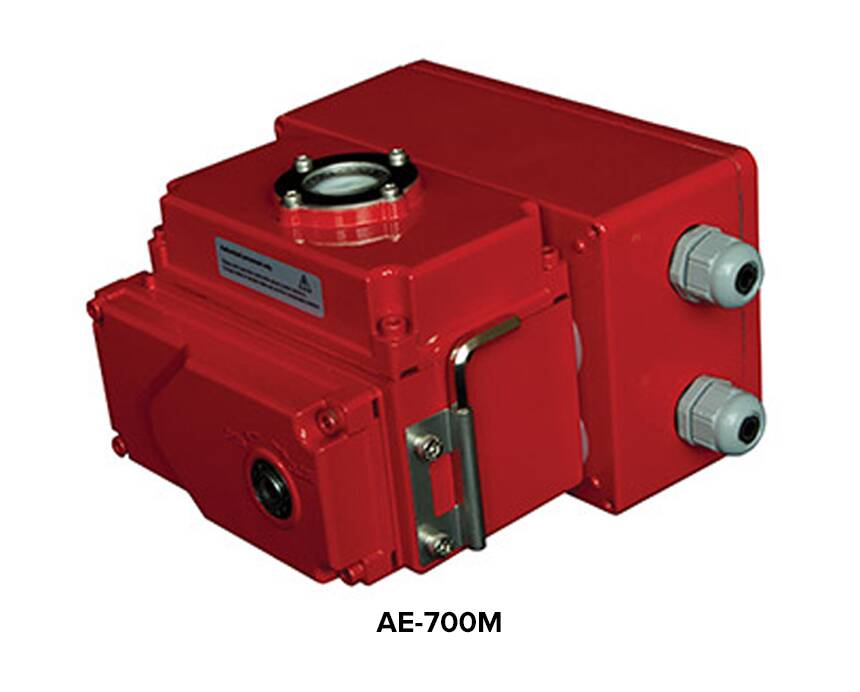

AE Series – Modulating

Electric Actuator, 120VAC, Double Acting, NEMA 4X, Manual Override, 4-20mA Modulation

  • Hard Anodized Aluminum Housing with External Powder Coating for Severe Duty Applications
  • 90˚ Operation
  • Enclosure: IP67 (NEMA 4, 4X)
  • ISO 5211 Mounting Pad
  • Worm Gearing, No Brake Required
  • Standard Manual Override
  • Torque Switches for Overload Protection
  • Squirrel Cage Induction Motor
  • Duty Cycle: 50%
  • 4 Limit Switches
  • Cable Entries: 3/4” NPT / M20 x 1.5
  • 5W Internal Heater
  • Terminal Block for Wiring Ease
  • Position Indicator
  • Standard Adjustable Travel Stops
  • Temperature Range: -4°F to 158°F
