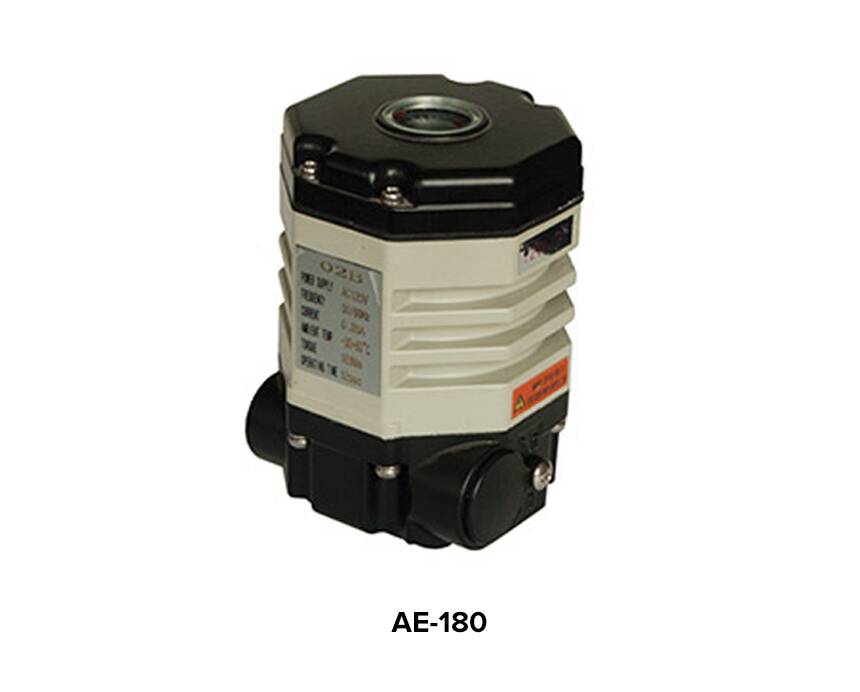

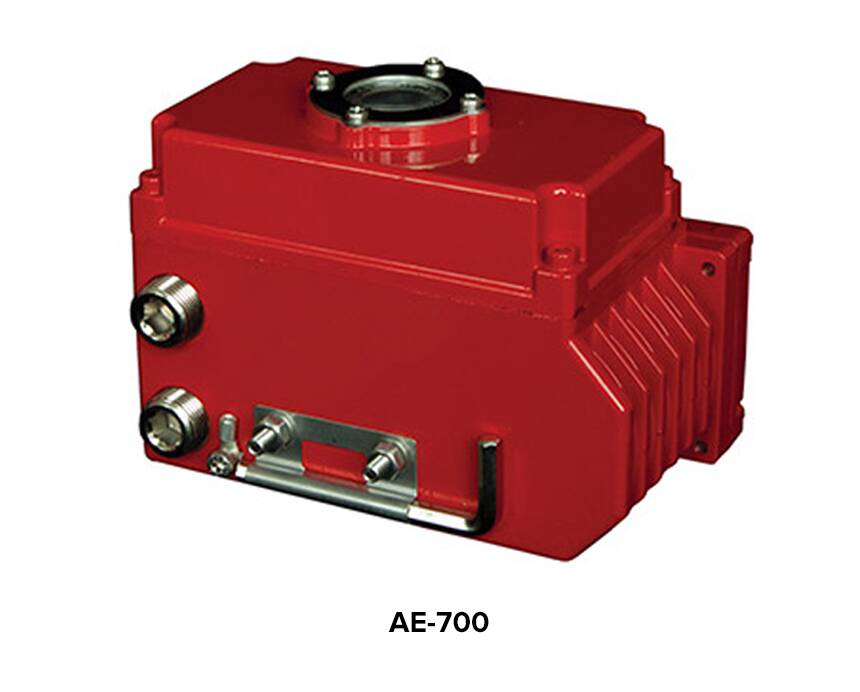

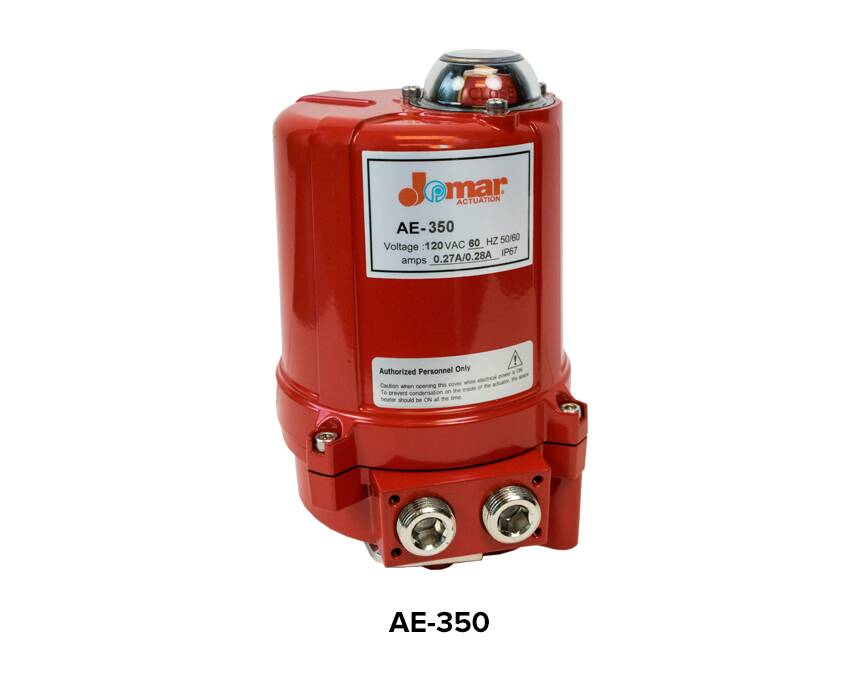

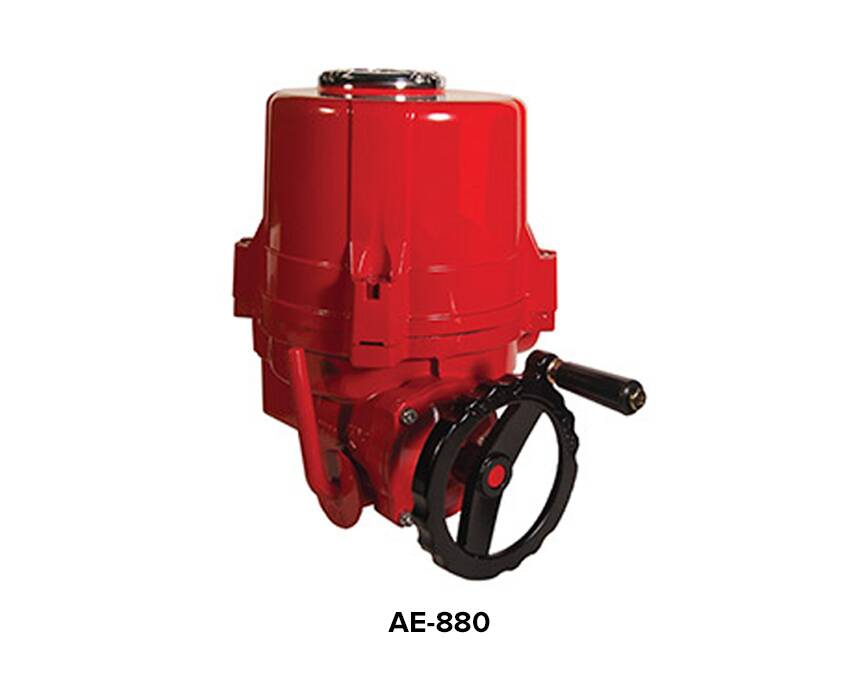

AE Series

Electric Actuator, 120VAC, Double Acting, NEMA 4X, Manual Override, On/Off Power

  • Hard Anodized Aluminum Housing with External Powder Coating for Severe Duty Applications
  • 90˚ Operation
  • Enclosure: IP67 (Nema 4, 4X)
  • ISO 5211 Mounting Pad
  • Worm Gearing, No Brake Required
  • Standard Manual Override
  • Torque Switches for Overload Protection (not including AE-180)
  • Squirrel Cage Induction Motor
  • Duty Cycle: 50%
  • 4 Limit Switches (AE-180: QTY 2)
  • Cable Entries: 3/4” NPT / M20 x 1.5
  • 5W Internal Heater (AE-350 and larger)
  • Terminal Block for Wiring Ease
  • Position Indicator
  • Standard Adjustable Travel Stops
  • Temperature range:
    – AE-180: -22°F to 140°F
    – AE-350 and larger: -4°F to 158°F
