T-203

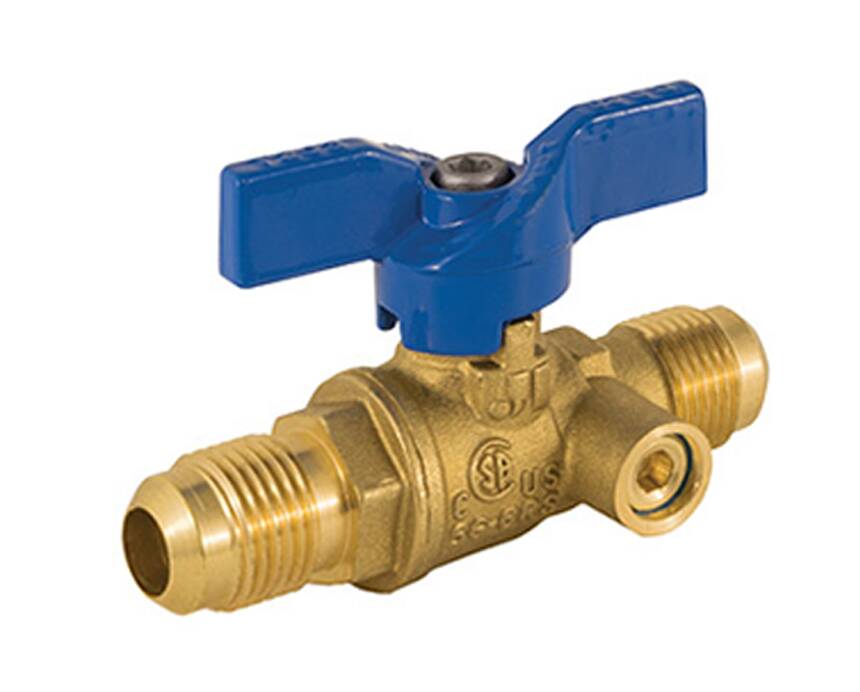

Gas Ball Valve, 2 Piece, Side Tap, 600 WOG

Features
  • Eliminates Need for Test Tee and Labor to Install
  • Ideal for  Outside Use in Extremely Cold Climates
  • Removable Plug Enables Port for Pressure Gauge
  • 1/8″ Side Tap
  • Valve Can be Locked in Closed Position by Reversing Handle
  • 2 FKM O-Rings
  • 100% Leak Tested
  • 100% Made in Italy
  • Leakproof Stem – Lifetime Warranty
  • Use Model T-100STN for Sizes Above 3/4″



Part No. Size Case Carton Weight (lbs)
FIP x FIP
102-301 1/4″ 100 10 44
102-302 3/8″ 100 10 40
102-303 1/2″ 100 10 47
102-304 3/4″ 80 8 61
Flare x Flare
102-402 3/8″ 120 12 51
102-403 1/2″ 120 12 57
102-404 5/8″ 80 8 54
Flare x FIP
102-405 1/2″ 100 10 50
  • UL Listed
    • YQNZ – Compressed Gas Shut-Off Valves
    • YRPV – Gas Shut-Off Valves
    • YSDT – LP Gas Shut-Off Valves
    • MHKZ – Manual Valves
    • YRBX – Flammable Liquid Shut-Off Valves
    • SFJQ – Valves, Refrigerant
  • CSA Certified
    • ANSI Z21.15 (.5 PSIG)
    • ASME B16.44 (5 PSIG)
    • CGA CR91 (5 PSIG)
  • ANSI B1.20.1
  • MSS SP-110
  • Buy American Act Compliant
