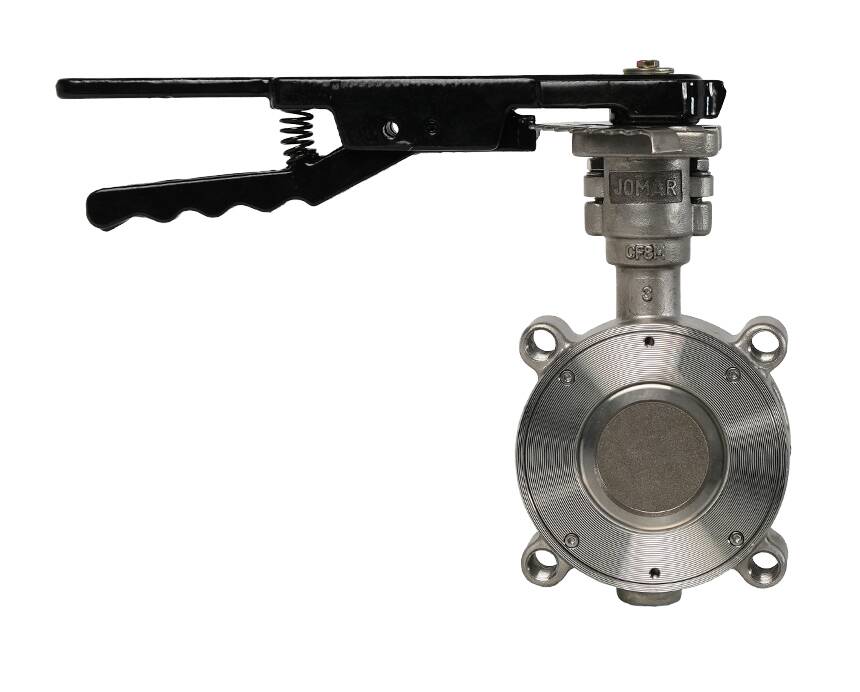

• HPBFV Stainless Steel 150 Class
    Features
    • Corrosion Resistant One-Piece Body
    • RPTFE or Fire-Safe Metal Seats Available
    • Bubble-Tight Shut-off Design
    • Durable One-Piece Stem - A564 Gr.630/17-4 PH® Materials
    • ISO 5211 Mounting Pad - 2" - 12” = Square Design - 14" - 24” = Keyed Design
    • Dual Offset Disc Design
    • Internal Stop to Prevent Disc Over-Travel
    • Tight Gland Packing Flange to Prevent Uneven Load Distribution
    • Bidirectional for Dead End Service
    • 29 in-Hg Vacuum Rating

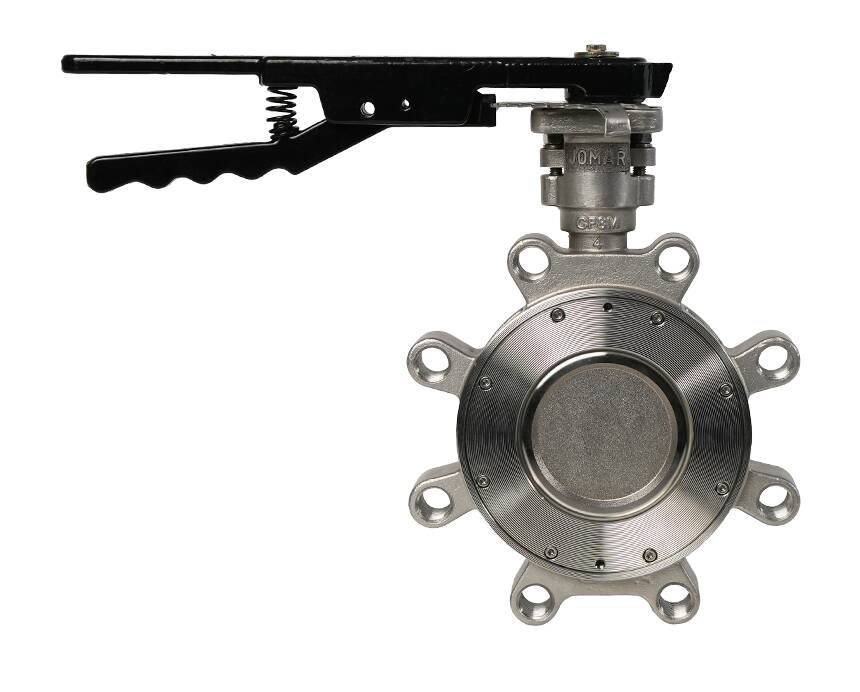

  • HPBFV Stainless Steel 300 Class
    Features
    • Corrosion Resistant One-Piece Body
    • RPTFE Seat
    • Bubble-Tight Shut-off Design
    • Durable One-Piece Stem - A564 Gr.630/17-4 PH® Materials
    • ISO 5211 Mounting Pad - 2" - 12” = Square Design
    • Dual Offset Disc Design
    • Internal Stop to Prevent Disc Over-travel
    • Tight Gland Packing Flange to Prevent Uneven Load Distribution
    • Bidirectional for Dead End Service
    • 29 in-Hg Vacuum Rating

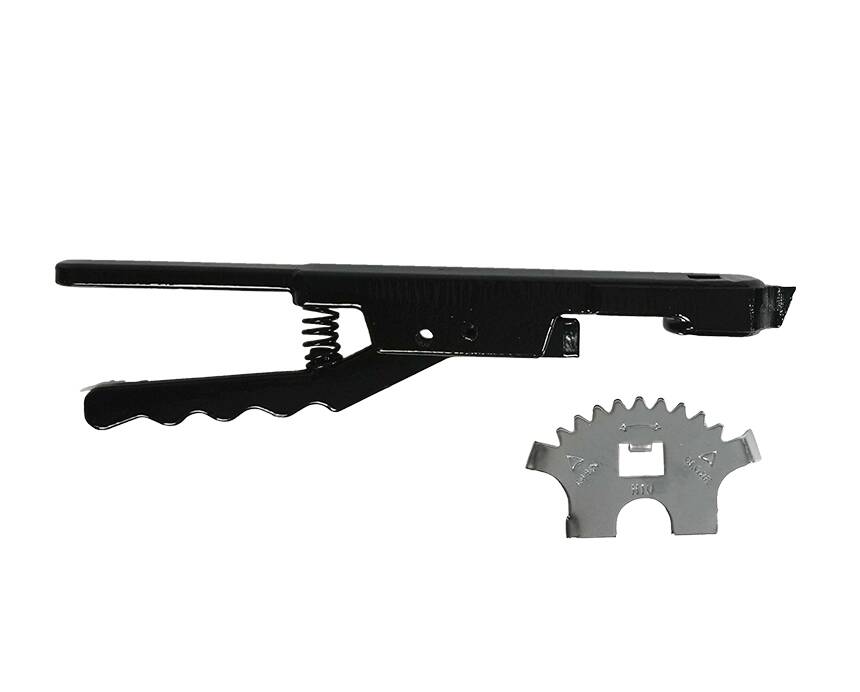

  • HPBFV Lever Handle
    Features
    • Ships Standard with HPBFV Sizes 2" - 4"
    • Can be Equipped to any HPBFV
    • Ergonomic Grip Design

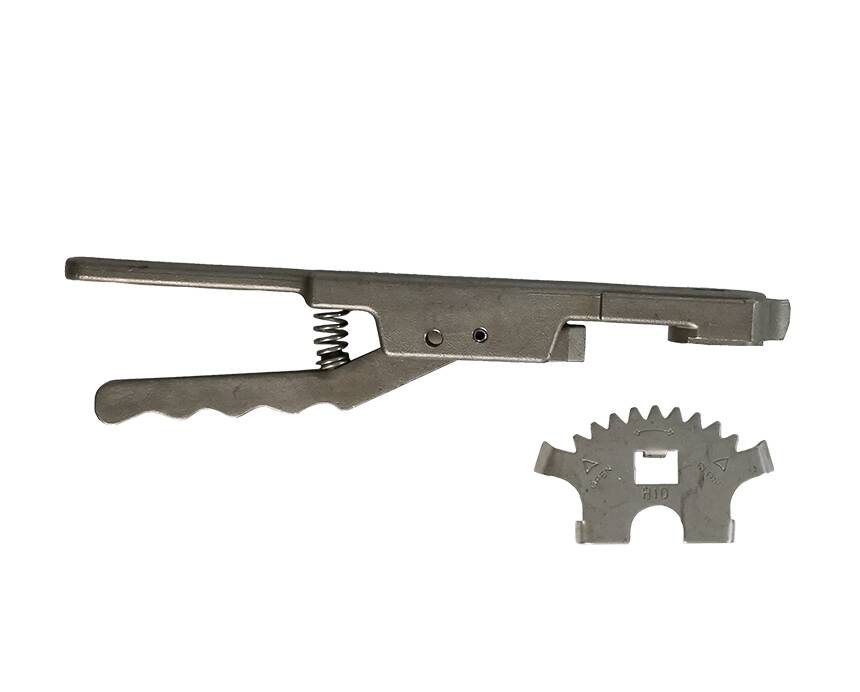

  • HPBFV Lever Handle – Stainless Steel
    Features
    • Can be Equipped to any HPBFV
    • Ergonomic Grip Design

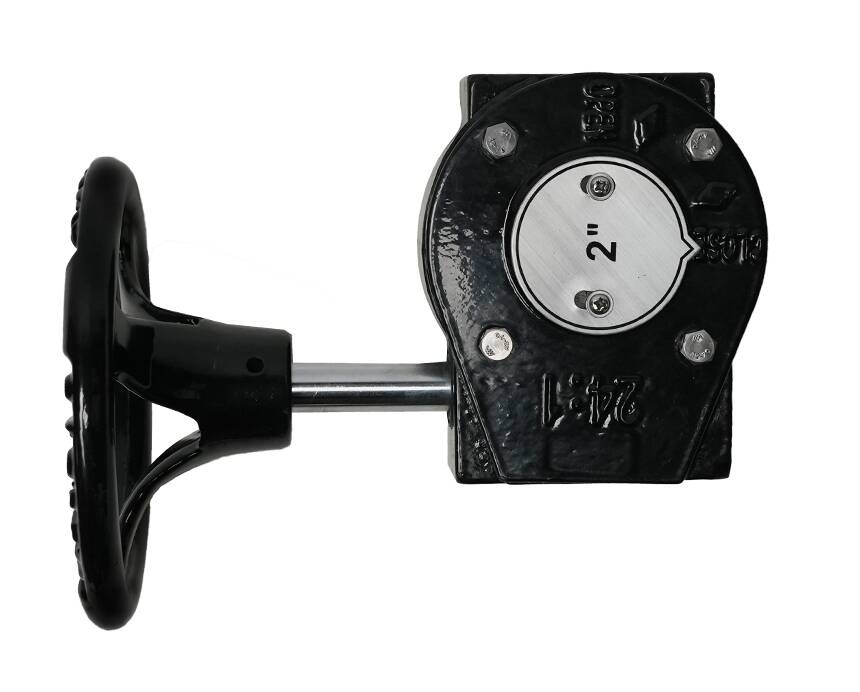

  • HPBFV Gear Operator
    Features
    • Ships Standard with HPBFV Sizes 8" - 12"
    • Can be Equipped to any HPBFV
