AE Series

120VAC Electric Actuator, Double Acting, Nema 4x, Manual Override

Hard anodized aluminum housing with external powder coating for severe
duty applications
90˚ operation
Enclosure: IP67 (Nema 4, 4X)
ISO 5211 mounting
Worm gearing, no brake required
Manual override standard
Torque switches for overload protection (except for AE-180)
Squirrel cage induction motor
Duty Cycle: 50%
4 Limit switches (2 for AE-180)
Cable entries: 3/4” NPT / M20 x 1.5
5W internal heater (AE-350 and larger)
Terminal block for ease in wiring
Position indicator
Adjustable travel stops standard
Temperature range:
-4°F to 158°F – AE-350 and larger
-22°F to 140°F – AE-180

Part No.	Torque	Voltage	Cycle Time

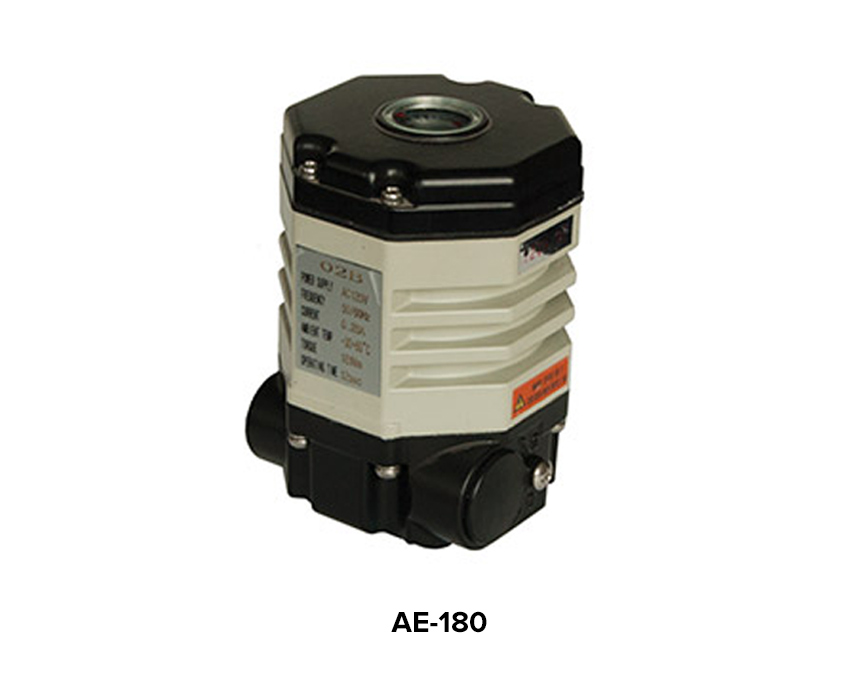

AE-180-120-15	180	120	12

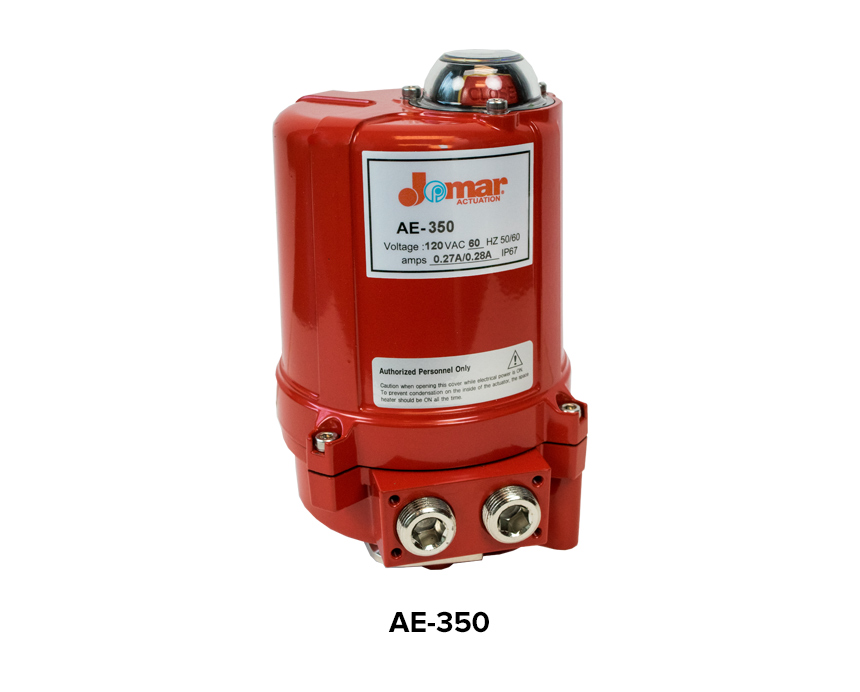

AE-350	350	120	13

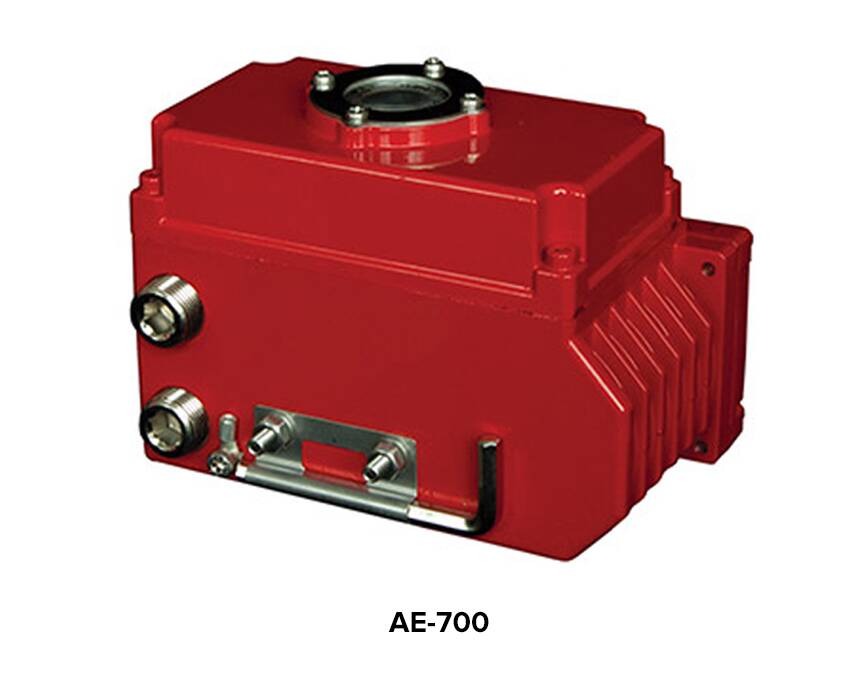

AE-700	700	120	14

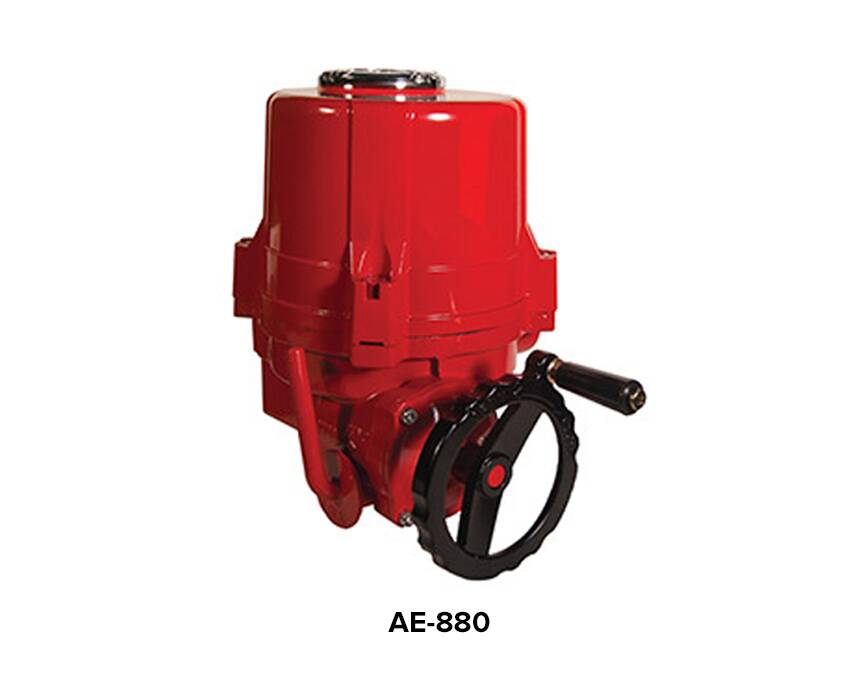

AE-880	880	120	21

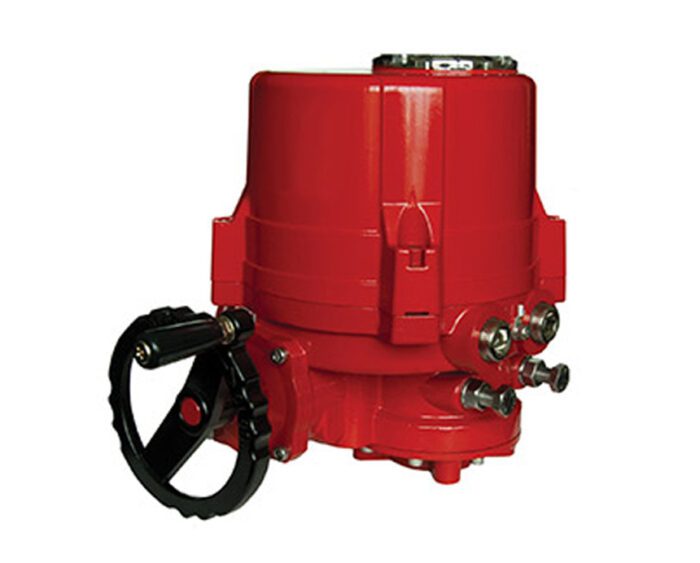

AE-1400	1400	120	26
AE-2100	2125	120	26
AE-3100	3098	120	31
AE-4400	4425	120	31
AE-7000	7080	120	39
AE-9700	9735	120	39

CSA applies to models AE-880 – AE9700:
- C22.2 No. 139-1982, 77-95, 100-04, UL429, UL2111, UL1004, 0-M91, 94.1-07, 94:2-07, 30-M1986, 25-1966, 1399-1982, 60529:05, 60079-0-07, 60079-1-07, ANSI/UL 429, 50E, 50, 1002, IEC 60529, 60079-0, 60079-1, and ANSI/UL 1203.
