T-204DU

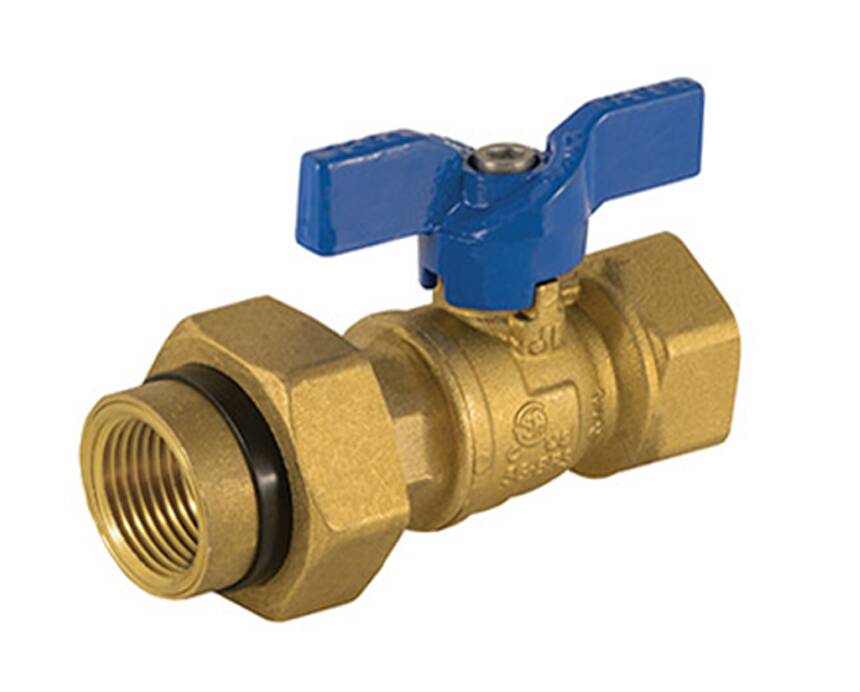

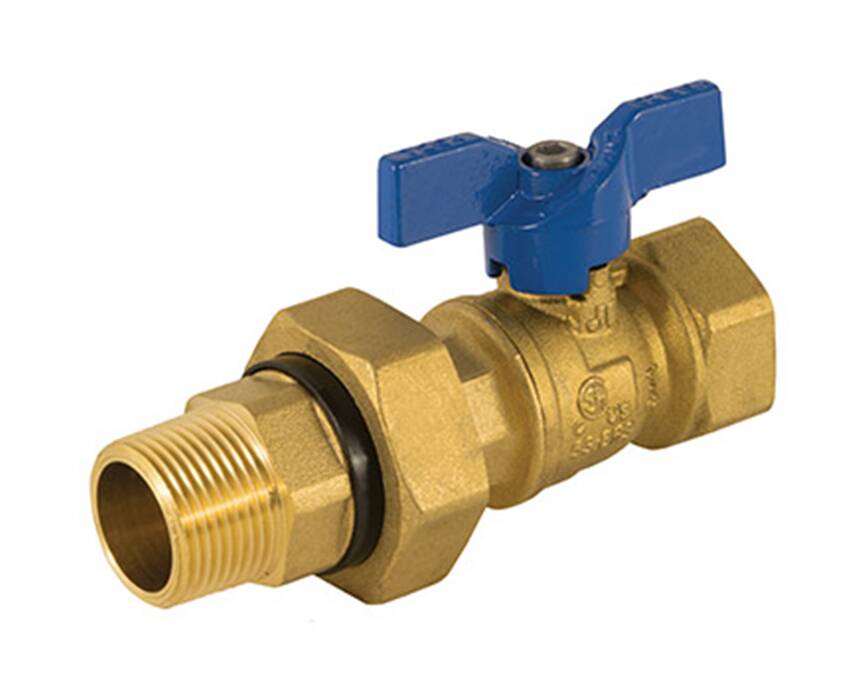

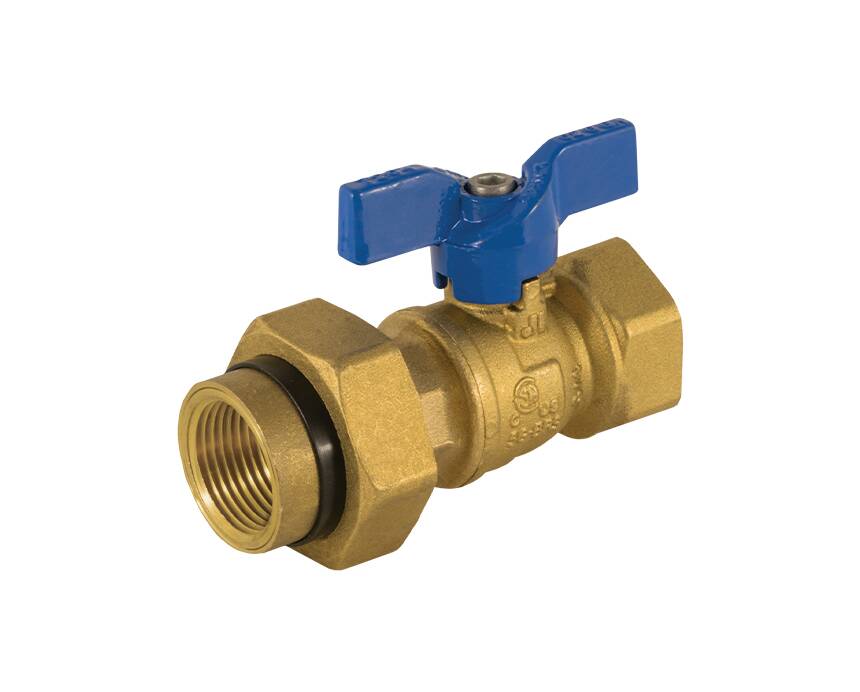

Gas Ball Valve, 2 Piece, Integrated Dielectric Union End, 600 WOG

Features
  • Meets NFPA 58 Dielectric Union Requirement
  • Valve Can be Locked in Closed Position by Reversing Handle
  • 2 NBR O-Rings
  • 100% Leak Tested
  • 100% Made in Italy
  • Leakproof Stem – Lifetime Warranty
  • See Resource Tab below for all Specification Sheets



Part No. Size Case Carton Weight (lbs)
FIP DU x FIP
101-403DU 1/2″ x 1/2″ 48 8 32
101-404DU 3/4″ x 3/4″ 40 4 43

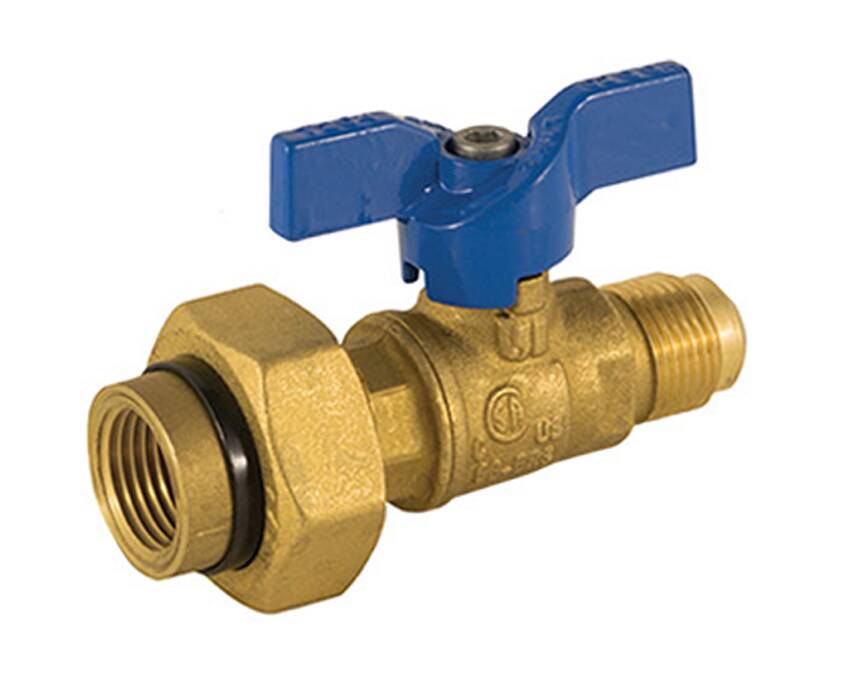

FIP DU x Flare
101-513DU 1/2″ x 1/2″ 48 8 35
MIP DU x Flare
101-703DU 1/2″ x 1/2″ 60 6 46
101-704DU 3/4″ x 5/8″ 40 8 44

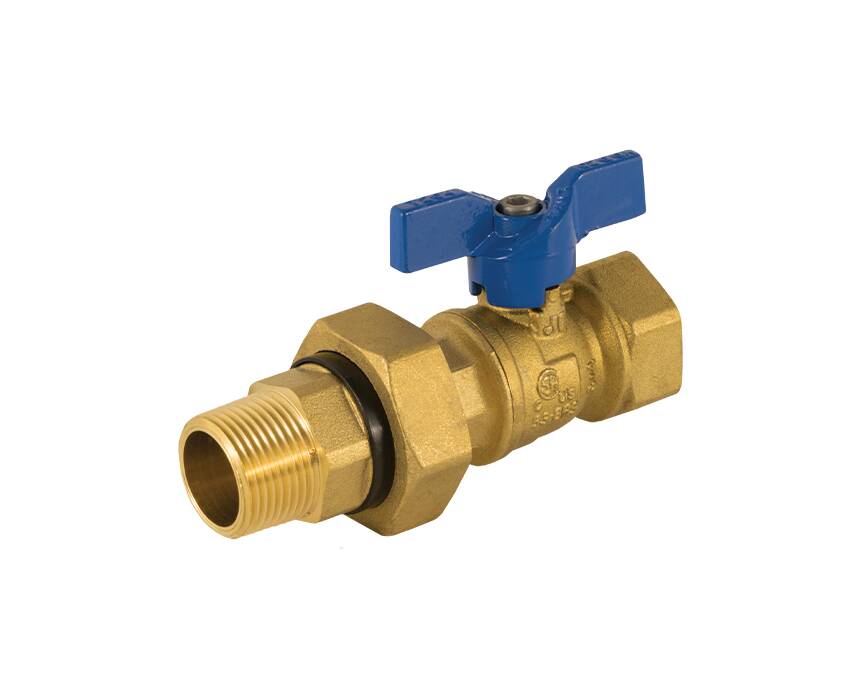

MIP DU x FIP
101-803DU 1/2″ x 1/2″ 36 6 28
101-804DU 3/4″ x 3/4″ 40 8 47
  • CSA Certified
    • ANSI Z21.15 (.5 PSIG)
    • ASME B16.44 (5 PSI)
    • CSA 9.4:21 (5 psig) – indoor/outdoor uses
  • ANSI B1.20.1
  • MSS SP-110
  • Meets or Exceeds Applicable Part of UL: YSDT – LP Gas Shut-Off Valves (600 PSI)
  • Flare Connection in Accordance with NFPA 54/ANSI Z223.1
  • Buy American Act Compliant
